Basic Info.
Product Description

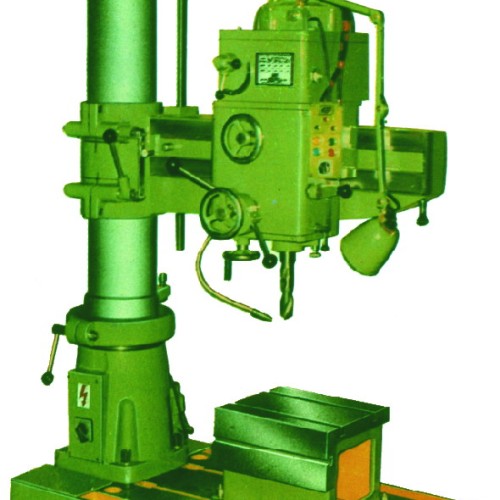

Model 40krdfa
drilling in steel 38
drilling in c. i. 40
tapping in steel 32
spindle travel 150
spindle taper mt-4
no. of spindle speeds 8
range of spindle speeds 70-1190
no. of feed 03
feed value mm / rev. 0.1 0.2 & 0.3
column diameter 220
max./minimum dist.between spindle centre to column face 890/370
max./minimum dist.between spindle nose to base plate 1150/490
vertical movement on column of railarm 660
size of base plate 1365 x 715
working surface of table 350x310
number/centre distance of "t" slots for base plate 2-138
size of "t" slots for base plate m-16
number/centre distance of "t" slots for working table 2-80
size of "t" slots for working table m-16
nett. weight of the machine 1500 kg.
shipping dimension of the machine 2200x1530x1115
drilling head motor 1. 5 h. p./3ph-50hz/1440 rpm
arm elevating head motor 0. 5 h. p. /3ph-50hz / 1440 rpm
standard accessories: electrical equipment with wiring, drilling head motor,
arm elevating motor, instruction manual, motor pulley, and
Company Profile
|
Business Type: |
Mfrs. all kinds of pillar drill machine,
bench type pillar drill machine,
heavy duty pillar drill machine,
auto feed pillar drill machine,
fine feed & auto feed all geared redial drill machine,
hackshaw machine,
pcb drilling machine,
high speed drill machine,
tapping machine,
drill vice, bench vice, universal vice, compound sliding table,
polishar, bench grinder, flexible shaft grinder,
electric motor, flour mill & flour mill motor. |
|
Comapany: |
K.r.panchal & co. |
|
Address: |
D/33/1, new arbuda ind. estate, g.s.t crossing road, new ranip, |
|
City: |
Ahmedabad |
|
Zip/Postal: |
382480. |
|
State: |
Gujarat |
|
Country: |
India |
.
