Basic Info.

Product Description

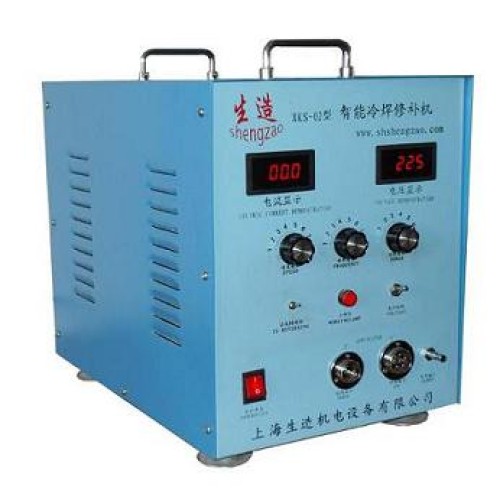

1model:xks-02 2input voltage(v)ac220v single-phase:50/60hz 3.the maximum power:2000w 4.second output voltage:20-160 5.maximum capacity(uf):560 6.frequency variable range(hz)(discharge times/second):40-2100 7.spot temperature (℃):8000~1000 8.electrode size(mm):1.0-3.2 9.size(l*w*hmm):485*315*365 10.net weight(kg):30kg 01 application dies, forging dies, injection dies, die-casting, pressure casting dies, metal products, machine spare parts and other tools. 02.suitable material aluminum material, aluminum alloy, copper material, copper alloy, low carbon steel, medium carbon medium, die steel, stainless steel, casting steel, cast iron, cast aluminum, tungsten carbide alloy, and all electrical conductor. 03.suitable defect can be repaired /welded can repair pin holes, gas hole, burring, flash, bump, scuffing, edge chipping, pinhole porosity, crackle, abrasion, wear and tear, miscalculation in manufacture, defect in manufacture, welding defect. 04. the position of the machine can weld can repair sharp corner, sharp-edged orifice plate, groove or furrow, side wall or jamb, bottom, deep cavitiy, flat surface, and etc.
