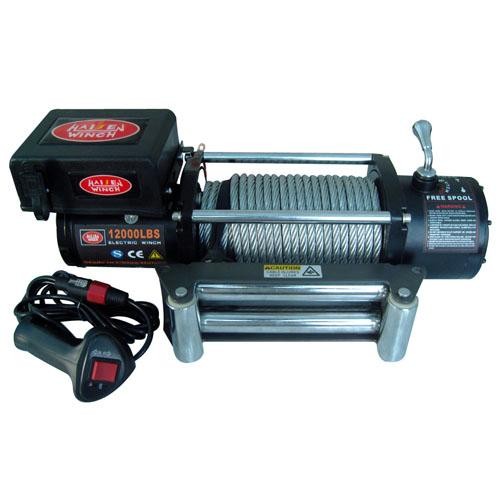

Product Description
Rated line pull:12000lbs(5443kg) single-line pull Motor: 6.0 hp Sealed Series wound Motor
Gearing: 3-stage planetary Gear radio:265:1
Braking: Automatic in-the-drum Freespool Clutch:1/4 turn Activation
Wire Rope: 3/ 8” ( 9.53 mm ) x 92' ( 28m )
Battery leads: 2 guage , 72 ( 1.83m )
Dimensions (L x W x H): 21.5” Lx 6.5”W x 8.6”H (545mm x 165mm x 218mm)
Drum Diameter: 2.51” ( 64mm ) Drum Length: 8.8” ( 224mm )
Weight: 90lb ( 41kg ) Switching Mechanism: Heavy Duty, Sealed Contactor
Switching Method: 11.5(3.5m) Handhold Remote
Duty Cycle: Intermittent Roller Fairlead: Standard, 4 way
Mounting Bolt Pattern: 10.0” x 4.5” ( 254mm x 114.3mm )
Handheld Remote: Optional Wireless Remote: Optional
Packing: Carton 26.4" L x 12.6" D x 9.6 H (670mm L x 320mm D x 245mm H)
