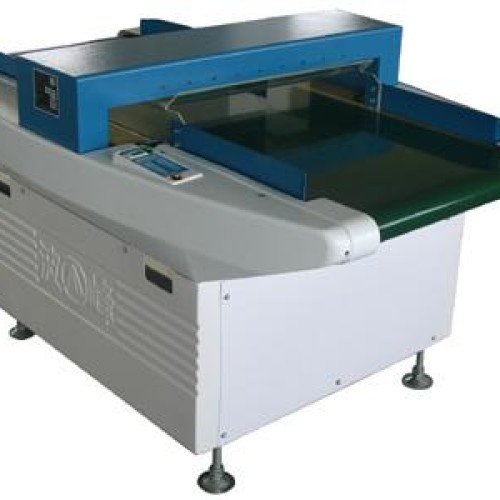

Needle detector for garment inspection(button operation)

Product Description

FEATURES: 1.Cycled,9 pairs of scnsor,excellentanti-disturbance performance. 2.Based on LED bar displayed control panel. 3.Hi accuracy detection locating technology,LED indication. 4.Lovel setup indication and real-time scnsitivity display. 5.Optional conveying mode after alarm. 6.Optional automatical restart. 7.Reliability mechanical frame design,Hi stable during detection. 8.Designed for universal AC power supply,switch power supply PURPOSE: 1,Detecting the metal chips, broken needles inside the sewing products. 2,Fabric products pharmaceutical products,chemical products, rubber products,food,etc. SPECIFICATIONS: 1, Model: NDC-A 2, Detection method: Magnetic induction 3, Detection sensitivity: 0.8 mm steel to samll scissors 4, Detection adjustment: 10 step 5, Detection width: 650mm 6, Alarm method: Buzzer, Lamp 7, Belt speed: 32m/min(50HZ), 40m/min(60HZ) 8, Power source: AC200-240V 50-60HZ 9, Rated output: Appr140W 10, Dimension: 1650mm(L)*1050mm(W)*900mm(H) 11, Weight: Appr220Kg Series: Height Detection Sensibility Remark 100mm 0.8mm steel to small scissors Standard type 120mm 1.0mm steel to small scissors Option at Factory 150mm 1.2-1.5mm steel to small scissors Option at Factory 200mm 1.5-2.0mm steel to small scissors Option at Factory 300mm 3.0mm steel to small scissors Option at Factory
