Basic Info.
Product Description

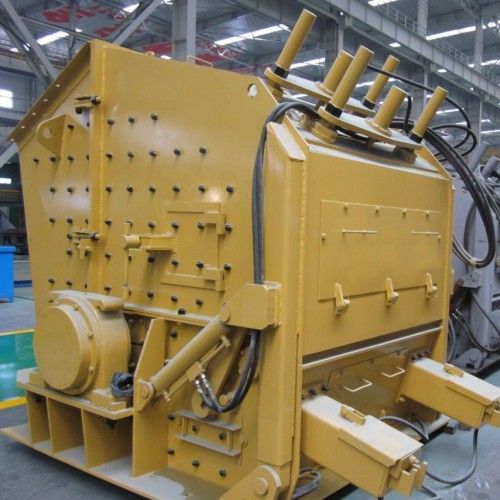

1. describtion of european type impact crusher
pfw series impact crusher with the advanced world standard is latest generation product, absorbing the latest technology around the world. because the rotor is the key part of the impact crusher and also the most critical part of inspection and acceptance, our company develop and produce the strong and heavy type rotor in order to get the higher rotary inertia. the use of high abrasion-resistant material and the best design of the crushing chamber make the performance of the crusher more remarkable.
2. features of european type impact crusher
1.adoption of the world-class manufacturing processes and selection of the most high-end raw materials.
2. heavy type rotor design and strict testing method to guarantee high quality rotor.
3. adoption of the integral cast steel structure on bearing seat makes it matches well with the crushing frame and increases the radial strength of it, while the divided design does not has this advantage.
4. the unique fixing device for hammers,make it more reliable.
5. the hydraulic adjusting device makes the maintenance easier and less.
6. self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer.
7. selection of the bearing with larger size and higher load.
8. finite element analysis on the rotor to ensure its performance more stable and reliable.
1.transmission part 2.rotor part 3.impact plate 4.rack
model
rotor size (mm)
feed opening (mm)
max. feed size (mm)
capacity (t/h)
power (kw)
weight (t)
overall dimension (mm)
pfw1210â…¢
1150×960
570×990
250
70-120
90-110
15.0
2550×1870×2100
pfw1214â…¢
1150×1400
570×1430
250
90-170
132-160
19.0
2550×2310×2100
pfw1315â…¢
1300×1500
625×1530
300
180-270
160-200
25.0
2960×2570×2380
pfw1318â…¢
1300×1800
625×1830
300
220-300
200-250
30.0
2960×2870×2380
