Basic Info.
Product Description
*features:

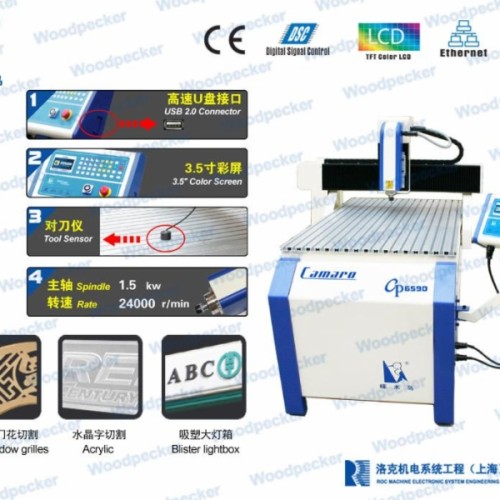

1. step motor, 3.5" dsc controller, 1.5kw air-cooled spindle;
2. multiple functions: resume when restart, oblique cutting, any-line restarting, various preset modes and customize mode for option;
3. compatible with cad/cam software, such as type3 /artcam / mastercam /cimatron /fastcam /ucancam(wentai) etc.
4. optional parts: 0.5kw floating spindle, vacuum table, vacuum pump, dust collect head, dust collect pump etc.
5. warranty: 1 year for machine, 6 months for spindle.
*parameters:
repeat positioning precision: ±0.02 mm
spindle: 1.5 kw
spindle rate: 24000 rpm
cutting tool diameter: f3.175/f6 mm
max moving speed: 7.2 m/min
working table size: 720 x 1270 mm
max travel range: 650 x 900x 110 mm
machine size: 1120 x 1520x 1400 mm
power source : ac220v±10% 50hz
consumption: 2.5 kw
weight 200 kg
