Product Description
400 mhz mips processor
linux operating system
brilliant big-size oled - display
mpeg-2 /h.264 hardware decoding
twin dvb-s2 tuner
2 x plug&play tuner sockets
optional for dvb-s, dvb-c or dvb-t
4 x dvb common-interface slot
2 x smartcard-reader (dreamcrypt ca)
v.24/rs232 interface
integrated compact flash and sd card slot
10/100 mbit compatible ethernet interface
3 x usb 2.0 (1 x front, 2 x back)
s/pdif interface for digital bit stream out (ac-3)
2 x scart-interfaces
s-video
yprpb (component)
dvi
audio/video cinch out
128 mbyte flash, 256 mbyte ram
2 x integrated sata
- support for internal hdd 3,5" in any capacity
- support for sata slimline dvd
embedded wifi (mini-pci device inl. antenna)
unlimited channel lists for tv/radio
channel-change time < 1 second
automatic service scan
directly bouquet-lists
epg (electronic program guide)
videotext decoder
multiple lnb-switching control (diseqc)
osd in many languages and skin-support

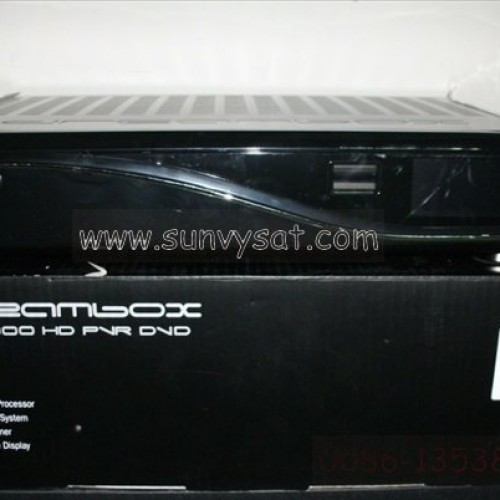

dm8000 technical data
dbs-tuner:
frequency range 950...2150 mhz
qpsk demodulation en 302 307
signal level - 65 dbm...- 25 dbm
signal-to-noise level 12 db max.
dbs-tuner input connector f-type female
input impedance 75 ohm
afc +/- 3 mhz
demodulation shaped qpsk and 8psk
fec viterbi and reed-solomon
viterbirate 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
roll-off factor 35 %
common-interface:
common-interface power consumption max. 0,3a/5v
video decoder:
video compression mpeg-2 / h.264 and mpeg-1 compatible
video standard pal g/ 25 hz, ntsc
video formats 4:3 / 16:9
letterbox for 4:3 tv-device
audio decoder:
audiokompression mpeg-1 & mpeg-2 layer i and ii, mp3
audio mode dual (main/sub), stereo
frequency: 32 khz, 44.1 khz, 48 khz, 16 khz, 22.05 khz, 24 khz
output analog:
output level l/r 0,5 vss on 600 ohm
thd > 60 db (1 khz)
crosstalk < -65 db
output digital:
output level 0,5 vss on 75 ohm
sampled data filtering 32 khz, 44.1 khz, 48 khz
s/pdif-output optical, coaxial (ac3)
video parameter:
input level fbas 1 vss +/- 0.3 db on 75 ohm
teletext filter in conformity with ets 300 472 standard
tv-scart:
output: fbas, rgb, s-video
vcr-scart:
fbas
serielle interface rs 232:
typ rs232 bidirectional
bitrate 115,2 kbit/s max.
plug connector sub-d-9
function: update of firmware
ethernet:
10/100 mbit compatible interface
function: update of firmware
usb:
usb 2.0 connector (3x)
sata interface:
for internal hdd
compact flash - reader
sd card - reader
lnb power and polarisation per tuner:
lnb current 500ma max.; short-circuit-protected
lnb voltage vertical < 14v no load, > 11,5v at 400ma
lnb voltage horizontal < 20v no load, > 17,3v at 400ma
lnb power off in standy mode
count of active satellite position:
diseqc 1.0/1.1/1.2 and usals (rotor control)
power consumption:
< 30w (in operation, horizontal polarization / 400ma lnb current)
< 25w (in operation, no lnb)
< 1w (deep-standby-mode)
input voltage:
230v / 50 hz alternating current +/- 15%
110v / 60 hz alternating current +/- 15%
physical specification:
ambient temperature +15°c...+35°c
humidity < 80%
size (w x d x h): 430 mm x 280 mm x 90 mm
weight: 4.5 kg without hdd a. dvd
