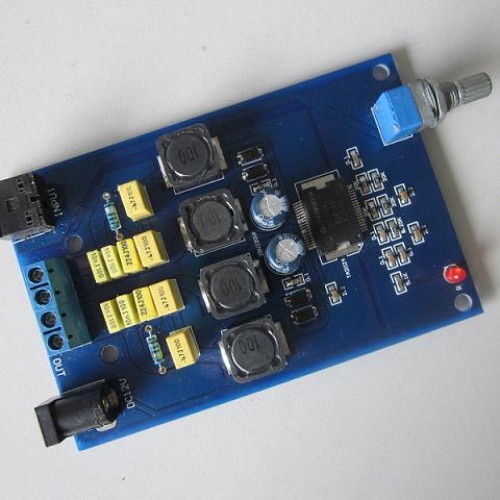

Digital audio amplifier board 2*15w class t

Product Description

1. Introduce SL-A18 is new stereo class T amplifier, it is 15W(4ohm) continuous average per channel class-T digital audio power amplifier, use Tripath's proprietary power processing technology, class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of class-D amplifier. 2. Application Power speaker Digital product Computer and PC multimedia Television Battery powered system DVD player 3. Feature Audiophile quality sound 0.04% THD+N 9W 4ohm 0.18% IHF-IM 1W 4ohm 11W 4 ohm,0.1% THD+N 6W 8 ohm,0.1% THD+N High power 15W 4 ohm,10% THD+N 10W 8 ohm,10% THD+N Class-T architecture High efficiency 88% 10W 8ohm 81% 15W 4ohm Dynamic range=102dB Mute and sleep Input Integrated Gate Drive Supply Over-current protection Over-temperature protection IC package: 36-pin Power SOP PCB material is FR4, thickness 1.6MM The dimension is 100mm*65mm
