Product Description
There are many types of optical prisms,such as wedge prisms,righe angle prism,rhombohedral prism,dispersing prism etc.each having a particular geometry to achieve the reflections necessary to perform a specific imaging task.

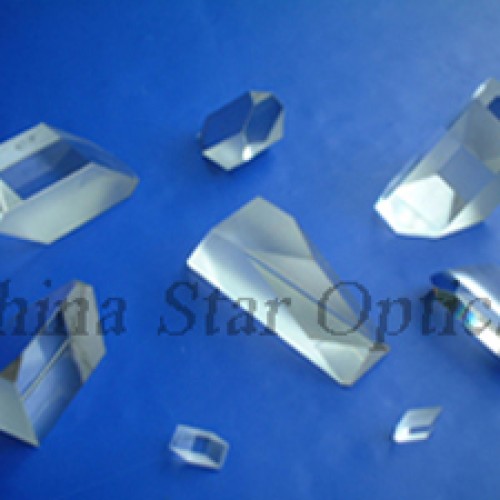

rectangular prisms(right angle prism) are used to deflect a beam of light through 90 or 180 degrees. this can be used as component to create various optical devices. bk-7 can be used for a range between the visible and infrared light.fused-silica can be used for a range between ultraviolet and infrared light. china star optics offers a wide range of different materials and different degrees of precision prisms.
specification of our right angle prisms/rectangular prisms as follow:
*material: bk7 glass or uv grade fused silica
*dimension tolerances: +/-0.1mm
*angle tolerance: +/-3 'or 30”
*clear aperture: 90%
*surface quality:60/40 or 20/10
*surface flatness: lambda/8 or lambda/4 at 633nm
*chamfer:0.3+/-0.1mm
*coating optional
