| Model NO.: | Optical prism78728 |
|---|---|
| Packaging Qty: | As requested |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | China star optics technology co.,ltd. |
| Customization: | Available Customized Request |
|---|

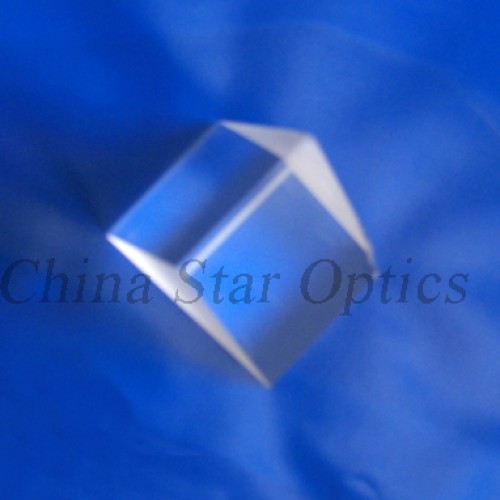

We supply optical prism,including right angle prism,wedge prism,dispersing prism,penta prism,dove prism,pyramid prism etc.. Specification of optical prism as follow: *Material BK7 glass or UV grade fused silica *Dimension Tolerances +/-0.1mm *Angle Tolerance +/-3 min or 30 sec *Clear Aperture 90% *Surface Quality:60/40 or 20/10 *Surface Flatness lambda/8 or lambda/4 at 633nm *Chamfer 0.3+/-0.1mm *Coating Optional
