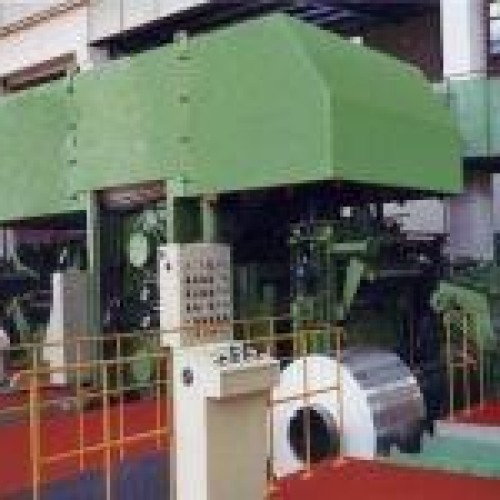

Aluminum cold rolling mill

Product Description

The aluminum cold rolling mill can process the Aluminum coil in thickness of 6-10mm from casters and hot rolling. These processed materials can be offered to produce sheet, strip, can, PS sheet, foil, and precision raw material for further processing. According to the gauge of the coils, it can be divided into cold heavy rolling mill and cold finishing rolling mill. The stand type of it is four-high cold rolling mill. Process flow of aluminum cold rolling mill Coil loading car---- payoff reel ----centering device ----pinch roll ----entry bridle device---- main rolling mill ----thickness gauge ----hydraulic shear---- guiding device---- tension reel---- wrapper---- coil unloading car. Specification: Material: Cast or hot rolled Input strip thickness: 7-8mm Input strip width: 850-1650mm Output strip thickness: 0.1-2.0mm Output strip width: 800-1600mm Max. rolling speed: 900m/min.
