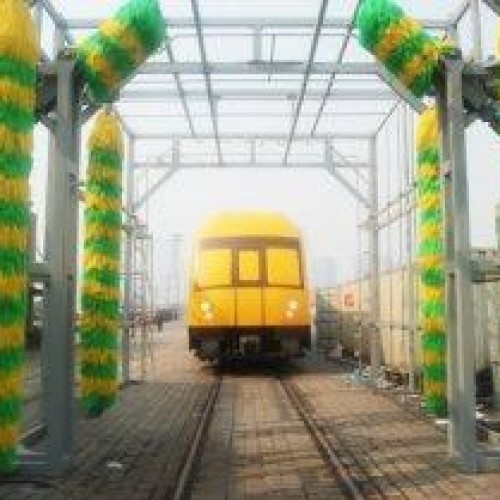

Train washing machine

Product Description

Washing system includes following positions: (1) Pre-cooling station Pre-cooling station composes of two spraying frame, nozzle is made up of stainless steel which are imported for a special purpose. Water column from pre-cooling nozzle is sector, which can decrease surface temperature of the train body, which can also avoid the volatilization of detergent from pre-wetting station and improve the effect of the detergent. Water coming from the pre-cooling station is cycling. (2) Pre-wetting station Pre-cooling station composes of two spraying frame which are at right-and-left, nozzle is made up of stainless steel which are imported for a special purpose. Water column from pre-wetting nozzle is sector, therefore detergent can cover the surface of the body equally. (3) Roof detergent brushing station Through roof brush arm swinging and resetting the roof body, detergent are spraying the connection of brush and body, which makes friction between the brush and the lateral body, roof detergent brushing washing station can clean the roof body. The contract pressure between the brush and the roof fixed after adjustment, air cylinder and spring coil act each other to adjust contact depth, which can keep the cleaning result, and not hurt the body surface to varnish. The pipe of spraying which installed the stainless steel nozzle adopted the material of stainless steel tube; Column and stander are made of standard type steel. After it immersed in heat zinc, it is sprayed the surface with paint, the special kink of paint from Japan is not only anticorrosive but also beautiful. wash Brush & wash at BL2 station (R1) Initial rinsing BL3 lateral wash & brush Final brush & wash Water Final Lateral (R2) rinse water final Lateral & roof brush: return resting place but rotating, cut off water Initial rinsing F3 noticing train out Red Train goes on Green . Washing Machine for Rail Transit BEIJINGTEPO-AUTO WASHING 6 (4) Lateral detergent brushing washing station Lateral detergent brushing washing station is the main working procedure in the process of washing the subway. Through brush arm swinging and resetting the body, which makes friction between the brush and the lateral body, lateral detergent brushing washing station can clean the train body. The position is called scavenging. The contract pressure between the brush and the lateral fixed after adjustment, air cylinder and spring coil act each other to adjust contact depth, which can keep the cleaning result, and not hurt the body surface to varnish. Liquid spraying state sprays cycling water contained detergent. The pipe of spraying which installed the stainless steel nozzle adopted the material of stainless steel tube; Column and stander are made of standard type steel. After it immersed in heat zinc, it is sprayed the surface with paint, the special kink of paint from Japan is not only anticorrosive but al
