Fs-1310-0002

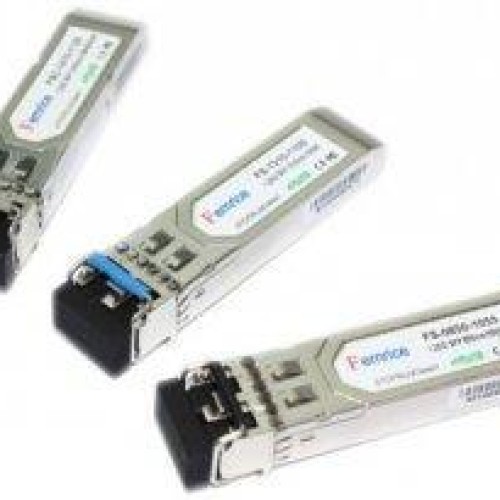

155mbps sfpo ptical transceiver, 2km reach
features
# up to 155mbps data-rate
# 1310nm fp(led)laser and pin photodetector for 2km transmission with mmf
# compliant with sfp msa and sff-8472 with duplex lc receptacle
# digital diagnostic monitoring:
# internal calibration or external calibration
# compatible with rohs
# +3.3v single power supply
# operating case temperature: standard :0 to +70°c
applications
# sdh stm-1, i-1
# sonet oc-3,sr1
# fast ethernet
# other optical links
description
the sfp transceivers are high performance, cost effective modules supporting 155mbps data-rate and 2kmtransmission distance with mmf.
the transceiver consists of three sections: a fp laser transmitter, a pin photodiode integrated with a trans-impedance preamplifier (tia) and mcu control unit. all modules satisfy class i laser safety requirements.
the transceivers are compatible with sfp multi-source agreement (msa) and sff-8472. for further information, please refer to sfp msa.
absolute maximum ratings
table1-absolute maximum ratings
- - - -
parameter | symbol | min | max | unit |
supplyvoltage | vcc | -0.5 | 4.5 | v |
storagetemperature | ts | -40 | +85 | °c |
operatinghumidity | - | 5 | 85 | % |
- - - -
recommended operating conditions
table2-recommended operating conditions
- - - -
parameter | symbol | min | typical | max | unit |
operatingcasetemperature | standard | tc | 0 | | +70 | °c |
powersupplyvoltage | vcc | 3.13 | 3.3 | 3.47 | v |
powersupplycurrent | icc | | | 300 | ma |
datarate | | | 155 | | mbps |
- - - -
opticaland electrical characteristics
fs-1310-0002:(fp(led andpin,1310nm, 2kmreach)
table3-opticaland electrical characteristics
- - - -
parameter | symbol | min | typical | max | unit | notes |
transmitter |
centrewavelength | ?c | 1260 | 1310 | 1360 | nm | |
spectralwidth(rms) | ?? | | | 4 | nm | |
averageoutputpower | pout | -20 | | -14 | dbm | 1 |
extinctionratio | er | 9 | | 16 | db | |
datainputswingdifferential | vin | 300 | | 1860 | mv | 2 |
inputdifferentialimpedance | zin | 90 | 100 | 110 | ? | |
txdisable | disable | | 2.0 | | vcc | v | |
enable | | 0 | | 0.8 | v | |
txfault | fault | | 2.0 | | vcc | v | |
normal | | 0 | | 0.8 | v | |
receiver |
centrewavelength | ?c | 1260 | | 1580 | nm | |
receiversensit
