Product Description
Introduction:

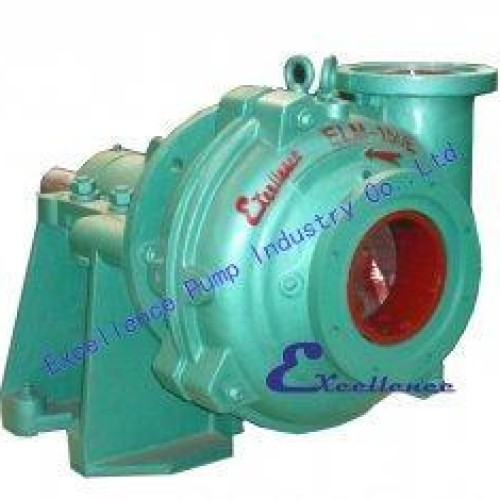

The ELM(R) series Centrifugal slurry pumps are cantilevered slurry pumps, horizontal, centrifugal slurry pumps. They are suitable for delivering less abrasive, low dense slurry. The ELM(R) series centrifugal slurry pumps have a high rate of revolution and small volume saving floor area.
Structure:
The frame plates of ELM Series Centrifugal slurry pump have changeable, wear-resistant metal liners or rubber liners upon request and the impellers are made of wear-resistant metal or rubber. And the discharge branch can be oriented to any of the eight different positions for installation and application upon request. The shaft seal is adopted both gland seal and centrifugal seal.
Application:
They are suitable for delivering less abrasive, low dense slurry.
Model Explanation and Performance Chart:
ELM-150E
E: Excellence Brand
L: Low concentration
M: Metal lined
150: Discharge size (inch)
E: Frame type with maximum power
- - - -
Pump Model | Allowable Max.Power | ELM Series Clear Water Performance | Impeller Dia. (mm) |
Capacity Q | Head H(m) | Speed n(r/min) | Eff.
?% | NPSH
(m) |
m3/h | l/s |
ELM-20A | 7.5 | 1.8-9 | 0.5-2.5 | 7-35.5 | 1400-3000 | 40 | 2.5-3 | 152 |
ELM-50B | 15 | 11.5-65 | 3.2-18 | 8.5-46 | 1400-2800 | 62 | 2.5-5.5 | 190 |
ELM-75C | 30 | 21.6-136.8 | 6-38 | 7-46.4 | 900-2400 | 57 | 3-6 | 229 |
ELM-100D | 60 | 46.8-324 | 13-90 | 7-48.30 | 800-1800 | 64 | 2.5-6 | 305 |
ELM-150E | 120 | 126-568.80 | 35-158 | 10.5-51.8 | 800-1500 | 60 | 2.5-6 | 381 |
ELM-200E | 120 | 72-1080 | 20-300 | 8-45 | 500-1100 | 74 | 3-6 | 457 |
ELM-250E | 120 | 1440-1800 | 40-500 | 6-48 | 500-1000 | 73 | 3-10 | 550 |
ELM-300S | 560 | 568-2538 | 130-705 | 8-60 | 400-950 | 79 | 2-10 | 653 |
ELM-350S | 560 | 650-2800 | 180-780 | 10-59 | 400-840 | 81 | 3-10 | 736 |
ELM-400S | 560 | 756-3312 | 210-920 | 7-37.5 | 300-600 | 85 | 2-8 | 825 |
ELM-450ST | 560 | 1080-4356 | 300-1210 | 9-40 | 300-550 | 87 | 3-10 | 933 |
ELM-550TU | 1200 | 1980-7920 | 560-2200 | 10-50 | 250-475 | 86 | 4-10 | 1213 |
- - - -
Loading ..
Company Profile
| |
Business Type: |
Excellence Pump Industry Co., Ltd is a professional slurry pump manufacturer in China. |
| |
Year of Establishment: |
1980 |
| |
Branches: |
Excellence & xiangshi |
| |
Address: |
No. 368, Xinshi North Road, Shijiazhuang, Hebei Province, China 050091 |
| |
City: |
Shijiazhuang |
| |
Zip/Postal: |
050091 |
| |
Country: |
China |
Excellence Pump Industry Co., Ltd is a professional slurry pump manufacturer in China. With the accumulation and development of years, we have formed a complete system of slurry pump design, selection, application and maintenance. We are devoting on offering the solutions of slurry pump application in the world. Our products are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries. Under the confidence of our clients home and abroad, we are becoming one of the most important slurry pump suppliers in China, and we have offered the professional pump solutions and service all over the world.
.
