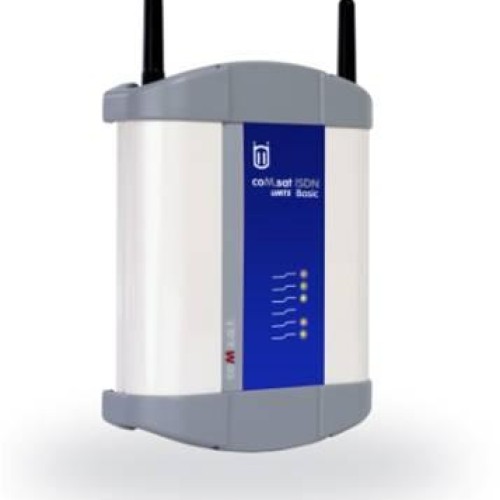

Ip-isdn-gsm/umts gateway for ip/pbx vendors,fixed and mobile operators

Product Description

General Features: UMTS Gateway for Voice and Data Trunking Gateway,Routing between the different technologies and networks ISDN, IP, UMTS Fallback, Backup solution forFixed, Wireless for Voice and Data NGN Interconnection CLASS 4, Class 5 SoftPBX Access Gateway Asterisk, 3CX, Trixbox Mobility Server Fixed Mobile Convergence Corporativo, Minicorporativo, Integra Cloud Computing Interface, Interface for Data and Voice for all services offered within the network Netlan, Centrex, Mobile IP Centrex e.g. Interface Overview: GSM, UMTS 2 UMTS modules SIERRA WIRELESS, Quadd 7 ML 8792Y Data and voice ISDN ISDN BRI, NT,TE COMMUNICATION WAN Port, 10,100 MB, RJ 45 LAN Port, 10,100 MB, RJ45 Supported protocols: TCP, UDP, IP, RTP,FTP, Tellnet, IPV6 Ready VoIP SIP protocol Codec support: G.711 Alaw,ulaw G.723 (5.3 kbps, 6.3 kbps) G.729, GSM FR iLBC 30ms iLBC 20ms 4 concurrent voice channels DTMF RFC 28833 or Inband Supports SIP, ISDN BRI (NT/TE) Min. of 4 simultaneous VoIP-calls (depends on Codec) 2x UMTS Modules inside 2x ISDN Calls Top quality for voice transmission due to digital technology Voice and Data simultaneously IP/PBX compatible Supports hard- and soft phones with SIP Codecs: G.711 a-law/µ-law, GSM FR, G.723 (5.3 kbps/6.3 kbps), G.729, iLBC_20ms, iLBC_30ms Internet access via UMTS Added Value for: Mobile Network Operators Connecting the (wired) PBX to the mobile network via UMTS at the customer -> subsidization of the fixed network access -> winning new customers Connecting the (wired) LAN to the mobile network via UMTS at the customer -> DSL subsidization Offering Mobile Centrex solutions for (wired) PBX and Mobile subscribers Offering low price tariffs for calls from fixed into own mobile network for customers of fixed operators Fixed Network Operators Least Cost Routing for calls into different mobile networks Backup and Fallback for the IP-Connection (Voice and Data) via UMTS Fixed and Mobile Network Operators Fixed Mobile Convergence Traffice Balancing between the networks Backup and Fallback for both networks for Voice and Data via IP/UMTS and vice versa Least Cost Routing for both networks Asterisk User Connecting the (wired) Asterisk PBX to the mobile network via UMTS at the customer SoftPBX Access Gateway to GSM/UMTS Enabling Least Cost Routing Mobility Server -> Integration of Mobile Users into the Asterisk PBX Centrex User/Vendor Trunking of existing lines Routing Intelligence Server NGN Interconnection Fallback/Backup Telefonica Netlan Fallback/Backup via UMTS UMTS VPN Gateway
