Tension membrane

Product Description

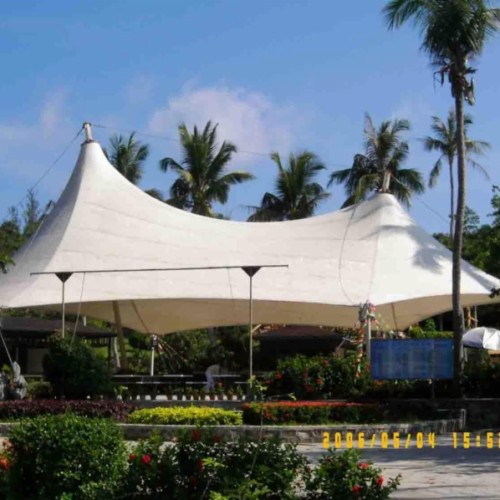

?.Application They are widely used in the coping of large scale venue,open penthouse(such as exhibition hall,toll station,recreation area),large scale sunroof,arts of spectacle and so on. ?.Product Model and main parameters and index Model 51052W2 51152W4 Application Versatile tension membrane Large building tension membrane Gram Weight(g/m2) 1050 1150 Basic Cloth(Dtex) 1100 2200 Width(cm) 250 Color 650 650 Flame Retardancy Level M2/B1 Lacqering Both sides with PVDF Tensile Strength(Warp/Weft)DIN53354(N/5cm) 4200/4000 6000/5500 Tearing Strength(Warp/Weft) DIN53363(N) 600/550 850/750 Adhesion DIN55357(N/5cm) 120 Remarks 1.Normal roll length is 30m?50m,others length need to discuss with factory. 2.Main color is white and can be customized according to YILONG color pantone. 3.Passed ISO14001 and ISO9001. ?.Advantages 1.High tensile strength. 2.High tearing strength(it can withstand force of 11 wind). 3.Very good ability to get self-clean. 4.Mildew proof. 5.High flame retardancy, has passed B1?M2. 6.It can be used for digital printing as a way of advertising. 7.Anti UV,Good weather resistance(sun-proof index >6,color fastness =6. 8.Temperature available between -30 and 70 ?.
