We offer Race Ways For Under Ground Cables.
Raceways, in shape are like ordinary Cable trays with 15 mm inside lips, and are used for laying underground cables. These are without center perforation. Cover is an essential part of Raceways. It may be an plain or a bended one, as per the requirement of the client. Bended one is a bit costlier then the plain one. Generally plain cover is provided, unless, Bended one is demanded. The cover is screwed at several places with the inside 15 mm lip. It may be fabricated from 2 mm or 3 mm M.S sheet.

TECHNICAL SPECIFICATIONS

NEC (NATIONAL ELECTRIC CODE) and NEMA (NATIONAL ELECTRIC MANUFACTURERS ASSOCIATION) have set certain standards for Race Ways. As per their standards, these should be fabricated from 2 mm M.S sheet, confirming to IS: 226/1975 and if these are galvanized, Galvanizing should confirm to IS: 2629. The painted Race Ways should be given one coat of Red Oxide Primer followed by two coats of Epoxy Paint.

We follow these standards in all respect, except in paint. We use Synthetic Enamel Paints confirming to IS:3537 or IS:168 . However, Red Oxide Primer and Epoxy paint may be provided on specific demand, as it is a very costly paint.

EXPANSION COUPLER PLATES/JOINTING STRIPS.

These are used to join two Race Ways. The size of coupler plate is 100 mm x 210 mm and that of the jointing strip 38 mm x 150 mm. It depends on the height of edge of a Race Ways whether coupler plate is needed or a jointing strip. These are supplied on specific demand and it is not necessary to supply these along with the Race Ways, without any demand.

EARTHING OF RACE WAYS

Each length of Race Ways should be earthed at least at two places by G.I FLAT of minimum 25x3 mm , to main earthing systems. EARTHING MATERIAL FOR RACE WAYS, such as Earthing Plates, Strips, Wire, Charcoal, Salt, GI Funnel, Chamber Cover, GI Pipe and Perforated Pipe, Tin Plates and Strips, Junction Boxes available with us.

Shelves are rectangular plates, used for fixing between four slotted angles. It gives it a shape called Rack. As per IS: 3764 / 1983 and IS: 1883 / 1983, the shelves shall have the following specifications.

• Its steel should confirm to IS: 1079 / 1973 or IS: 513 / 1973,
• Thickness of shelves shall be 1 mm.
• It shall have lipped flanges, width of flange being 30 mm and depth of the lip (inside lip) 15 mm.
• It shall have 8 mm corresponding holes for fixing with slotted angles (which also have 8 mm holes).
• It shall have 8 mm holes for Gussets (corners).
• Its width shall be 900 mm and depth 300 mm, 400 mm, 500 mm and 600 mm.
• The ground clearance shall be 45 mm.

We provide our products having full conformity with above mentioned specifications. However due to requirement of customization we also fabricate shelves in about 100 sizes. The length of our shelves vary from 300 mm ( 12 ” ) to 1175 mm ( 47 ” ).and depth from 150 mm ( 6” ) To 1050 mm ( 42 ” ). We can also manufacture shelves in 6 fold or 8 fold.

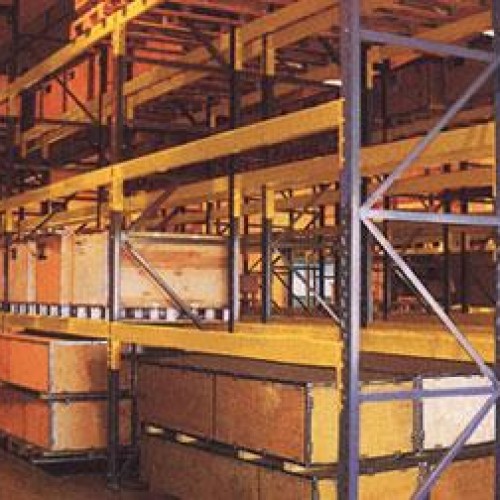

STORAGE PROBLEM ? WE HAVE THE SOLUTION We are pleased to introduce ourselves as one of the Suppliers of various types of slotted angle steel rack and other allied components. We have supplied and fitted different type of slotted angle steel rack at many places of our valued clients as per their specifications. Thereby increasing the storage capacity beyond their expectations and also to their entire satisfactions. M.K Slotted Angle Manufacturing Co. also taking a refitting and dismelting labour job at lower rate and faster service. We are also providing a manpower to should you require any clarification. Please do not hesitate to contact us in the meanwhile. We anticipate to serve you in the near future.

Slotted Angle shall be fabricated from steel corfirming to IS : 226/1975, or IS : 4030/1973, or IS : 808/1964. Its size ( for racks ) shall be 40x40x3 mm. It shall have 8 mm holes provided at 50 mm center to center. No specific length of slotted angle is given in the specifications.

Since the publication of these specifications, the applications and utility of slotted angles, have multiplied many folds, which were unforeseen earlier. It has compelled the industry to make some minor changes only in its sizes, fix certain lengths and make minor difference in distance of Holes, without effecting its load bearing capacity.

Our Slotted angles confirms to the above noted IS specifications in respect to steel and its holes. Considering its multipurpose uses, we have reduce the distance between the holes, which increases the number of bolting positions in an angle, without effecting its load bearing capacity.

The sizes available are, 40x40x18 G, 40x40x16 G, 40x40x2 mm, 40x40x12 G(2.5 mm ), 40x40x10 G (3 mm), 40x60x14 G and 40x80x12 G. The lengths available are 3 mtr ( app. 10 ft/118”), 2.5 mtr ( app. 8 ft/98”), 2.2 mtr ( app. 7 ft. / 86" ), 2 mtr. ( app. 6.5 ft / 78 ” ) and 1.8 mtrs ( app. 6 ft / 71 ” ). Length more than 3 mtr. / 10 ft. / 118 ” can be achieved by jointing two angles by Lap type Method or by Butt Type Method.

A One Slotex's Mezzanine Systems are fully engineered floor structures. We will build to suit your needs. A-one mezzanine solutions maximize the use of existing overhead space, saving you the cost of conventional building expansion. If you are running out of space in your current facility and would like an affordable mezzanine solution, Contact us we will suggest you the right structure in a very affordable price.

Specifications:

1. Mezzanine shall be prefabricated custom-designed unit.
2. Mezzanine may be free-standing or may be supported by Existing walls, Ceiling or Pillars etc. for vertical or horizontal support.
3. Mezzanine structure shall be capable of being erected, dismantled and relocated with hand tools.

Dear sir, we could supply below Hot rolled angle bar: (1)Equal angle bar:Material Q235A, B, C, D; Q345 A, B, C, D; Q420; 16Mn. Specification: 2, 2.5, 3.0, 3.6, 4, 4.5, 5, 5.6, 6.3, 7, 7.5, 8, 9, 10, 11, 12.5, 14, 16, 18, 20. (2) Unequal angle bar:Material Q235, Q235A, Q235B, Q345, Q345B, CCSA, CCSB. Specification: 2.5/1.6, 3.2/2, 4/2.5, 4.5/2.8, 5/3.2, 5.6/3.6, 6.3/4, 7/4.5, 7.5/5, 8/5, 9/5.6, 10/6.3, 10/8, 11/7, 12.5/8, 14/9, 16/10, 18, 11, 20/12.5. 4, Hot rolled I-beam:Material Q235, Q235A, Q235B. Specification: 10, 12.6, 14, 16, 18, 20a, 20b, 22a, 22b, 25a, 25b, 28a, 28b, 32a, 32b, 32c, 36a, 36b, 36c, 40a, 40b, 40c, 45a, 45b, 45c, 50a, 50b, 50c, 56a, 56b, 56c, 63a, 63b, 63c. From 12, 24a, 24b, 27a, 27b, 30a, 30b, 30c, 55a, 55b to 55c, we may negotiate for supply. if you are interested,pls contact me by email asyingyi12@126.com or asyingyi12@163.com thanks and waiting for your inquiry! regards, Ann
