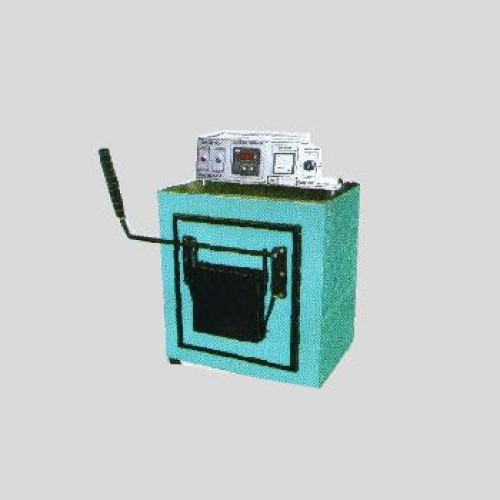

Nsw103 High Temperature Furnace 1200c

  • Model/Article No : Nsw-103 High Temperature Furnace 1200c43155
  • Category :
Product Specifications

The furnace is insulated with ceramic fibre blanket of high density for better insulation. The furnace can run continuously at 1150C trouble free. The furnace is quick heating type, light in weight, table mounting type, compact elegant in design outer painted in epoxy powder coating. The hinged type swing door insulated with ceramic fibre to avoid heat losses from the door. The furnace is fitted with digital Temperature controller cum indicator to avoid over heating for long life and trouble free working. The panel is fitted at the top of the furnace.

NSW-103 High Temperature Furnace 1200 C


CHAMBER SIZE (INSIDE) RATING ALL PRICES IN RS




HTF-1 100x100x225 1.5 K.W. 59,100.00.00
HTF-2 125x125x300 3.0 K.W. 69,500.00.00
HTF-3 150x150x300 3.0 K.W. 73,600.00.00
HTF-4 200x200x300 3.0 K.W. 1,07,200.00
HTF-5 200x200x455 4.5 K.W. 1,60,800.00
HTF-6 200x200x605 6.0 K.W. 2,14,500.00
HTF-7 300x300x300 9.0 K.W. 1,78,500.00
HTF-8 300x300x455 12.0 K.W. 2,04,800.00
HTF-9 300x300x605 18.0 K.W. 2,27,800.00
Option PID controller having 4 Ramp & 4 soak profile can be fitted above instruments at an extra coast

17,900.00
