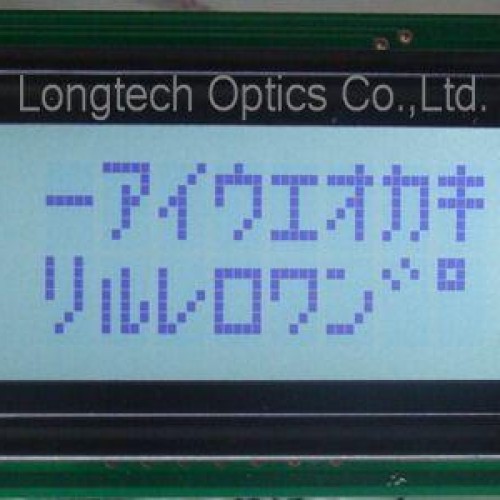

| Model NO.: | Standard lcd module 8x283583 |
|---|---|
| Packaging Qty: | By cartons |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Longtech optics co., ltd |
| Customization: | Available Customized Request |
|---|
Feature: 1. 2-line x8 characters display; 5x8 dots with cursor; 2. Built-in controller (SPLC780D or equivalent); 3. +5V power supply(Also available for +3.0V); 4. 1/16 duty cycle;1/5bias; 5. TN, HTN, STN or FSTN mode; 6. BKL to be driven by pin15, pin16. LCM0802A Specification: Out Dimension: 40.0*35.4 Viewing Area: 26.4*13.9 Dots Size: 0.55*0.55 Character Size: 2.95*4.75 LCM0802B Specification: Out Dimension: 58.0*32.0 Viewing Area: 38.0*16.0 Dots Size: 0.56*0.66 Character Size: 2.96*5.56
