Product Description

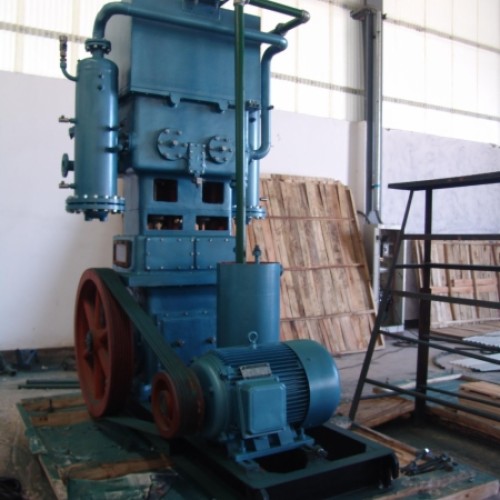

Bottling compressors are series bottling products that developed by our company. these series of compressors are unit form. the largest displacement: 3m3 /min, and the highest pressure: 16.5 mpa. there are many structures such as 3 ranks 3-stage, 3 ranks 5-stage, 2 ranks 4-stage and so on, all of these are vertical, single action, water cooled, non-lubrication and without water in cylinder, reciprocating piston compressors. every stage coolers, motor and bare compressor are installed in the same chassis, which is convenient for installation. high pressure stage coolers are coil-type, putting them into the water tank of frame and single water tank on chassis respectively. cooling water can be recycled and have good cooling effect, also its convenient to check seal condition directly and for operation and maintenance. low pressure stage coolers are hanging at inlet and outlet vent of cylinder. the structure is compact and only covered with small area, meanwhile, the original piston and packing seal are advanced self-lubricating materials. because cylinder doesnt need to infuse oil and distilled water, clean compressed gas can be obtained. the worn easily parts are longevity. cylinder stuffing unit have the main and auxiliary packing, which can ensure the purity of gas when filling with gas between main and auxiliary packing. also it owes the advantages of good dynamic balance, small vibration and noise, smooth, stable, safe, reliable and economic operating. technical performance is advanced and has already reached the international advanced level. now this kind of compressors mainly applied to oxygen, nitrogen and hydrogen bottling industry, also they are suitable for air separation, medical, chemical industries etc.
the following is the main products list or technical parameter for these series compressors. click"the main products of bottling compressors"to see detailed information.
.jpg "Bottling compressors")
Company Profile
| |
Business Type: |
The medium of our main reciprocating piston compressors is air, nitrogen, oxygen, acetylene, hydrogen, coal gas, oil gas, natural gas, carbon monoxide and carbon dioxide etc. and their displacement: 0.1-400m3/ min, discharge pressure: 0.1-16.5 mpa. our compressors are sold to more than 30 provinces (autonomous regions) of china, and more than 20 countries and regions abroad, such as america, canada, russia, eastern asia, southeast asia, middle asia, africa and so on. |
| |
Comapany: |
Jiangxi gas cmpressor company limited |
| |
Year of Establishment: |
1951 |
| |
Address: |
Shahe industrial zone |
| |
City: |
Ganzhou city |
| |
Zip/Postal: |
341000 |
| |
State: |
Jiangxi province, china |
jiangxi gas compressor company limited is one of the key enterprises which manufactures compressors in china, a state second-grade enterprise and has passed iso9001-2000, the vice-chairman unit of china's general machinery compressor association, a top ten compressor manufacturer. we have a professional design team which led by compressor experts, also have the design and manufacturing license for the first and second species pressure containers. the manufacturing technology is advanced and inspection means is perfect. for more than 50 years experience in the production of the compressors, now we become a comprehensive company which can design and manufacture reciprocating piston compressors, screw compressors, offset printing machines, air receivers and so on. the 2d12-100/8, l5.5-40/8, 4l-20/8, 3l-10/8 , lgf?-10/8-d etc air compressors of our company have obtained
the national energy-saving product certificates, 2z-1.5/25 frequency conversion acetylene compressor obtained national patent product award. some of our motors, electric control cabinets are certificated by csa (canadian standards association) international, and coolers are approved by asme ( american society of mechanical engineers).
our company mainly produces large or medium type dynamic air compressors and process compressors. and we have the ability to produce more than 1000 sets of compressors which can output 200,000 cubic meters gas for each one every year.the medium of our main compressors is air, nitrogen, oxygen, acetylene, hydrogen, coal gas, oil gas, natural gas, carbon monoxide and carbon dioxide etc. and their displacement: 0.1--400m3/ min, discharge pressure: 0.1-16.5 mpa. our compressors are widely used in industrial departments such as mining, metallurgy, machinery processing, road and bridge building, chemical industry, food, medicine and instrumentation etc.
our compressors are sold to more than 30 provinces (autonomous regions) of china, and more than 20 countries and regions abroad, such as america, canada, russia, eastern asia, southeast asia, middle asia, africa and so on. now we hope to cooperate with more foreign companies at abroad.
.
