Basic Info.
Product Description

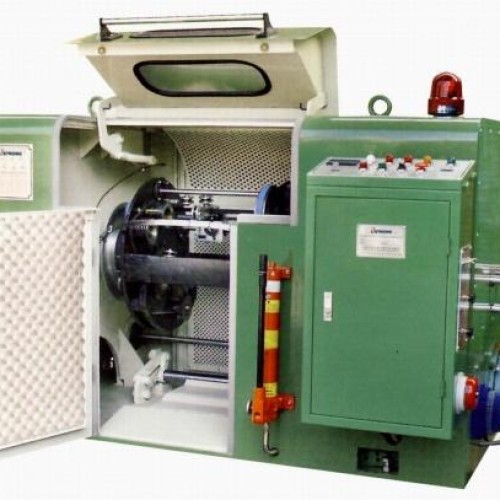

650p automactic high speed wire bunching machine(1600rpm) technical parameter
1.machine type 650p
2.max. driving speed 1600rpm ( 3200twist/min)
3.power : 10hp motor & 10hp frequency converter
4.dia,per strand :0.15mm-1.0mm
5.twist distance : 11.15mm-60.24mm( changeable according to clients' requirements)
5.stranding sec.area : 0.80mm2-5.5mm2
6.twist direction : s/z optional twist direction
7.take-up bobbin : 630mm
8.tension control : manual adjustment or magnetic clutch automatically control tension
8.traversing unit : 30way winder;bearing traversing;adjustable traversing range and distance
9.brake : automatically internal & external brake controlled by electromagnetic brake
10.upper and down axis platform : hydraulic elevator
11.twist distance exchange : manually exchange gear
12.spindle height : 850mm
13.noise level <=80decibel
14.dimension(mm) 3300l*1500w*1650h
15.net weight(kg) 3350
Company Profile
|
Business Type: |
Listrong mechanical & electrical co., ltd is a professional wire and cable
production equipment manufacturer with development, design, whole plant
planning and technical advice, manufacture, installation, commissioning and
post-sales service in one.
th |
|
Comapany: |
Suzhou listrong mechanical and electrical co., ltd |
|
Address: |
No.28 xiexin road dongzhu,new district,suzhou china |
|
City: |
Suzhou |
|
Zip/Postal: |
215163 |
|
State: |
Jiangsu,china |
|
Country: |
China |
.
