Basic Info.
Product Description

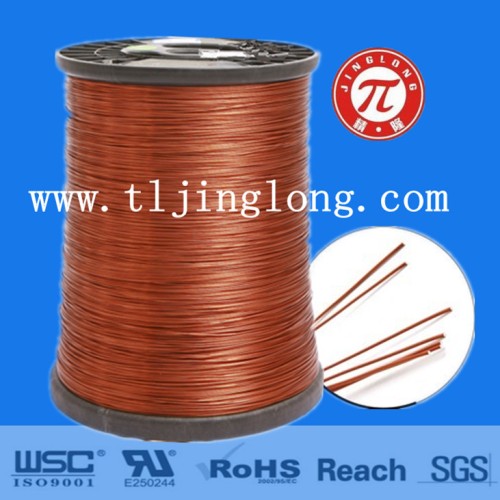

Product description:
1. model number: qzcca-155 qzycca-180 q(z(y)/xy)cca-200
2. brand name: jinglong
3. type: insulated
4. conductor material: copper clad aluminum
5. insulation material : enameled
6. thermal class : 155, 180, 200℃
7. diameter range: 0.10-4.50 mm
8. standard: jinglong standard
9. certification: iso9001-2008, rohs, reach, sgs
10. trade shows: cwieme, china canton fair, coiltech2012
11. delivery time: 15-30 days
12. stable quality; quick delivery; good service!
technical test iterms:
maximum overall diameter, conductor diameter, film thickness, conductor resistance, elongation, spring back, mandrel winding, sudden jerk, cut through, heat shock, room temperature breakdown voltage, high voltage hole, and pin-hole, etc.
product characteristics:
this product provides high heat resistance, good weldability characteristics.
application field:
suitable for high-frequency transformers, general transformers, inductance coils, motor, household motor, micro motor, micro rotor coils, sound coils, deflection coils, degaussing coils, etc.
Company Profile
|
Business Type: |
Tongling jinglong electric material co., ltd. established in 2003, is a professional manufacturer of enameled wire. as one of the largest manufacturers of enameled wire in china, we output 15,000 metric tons of enameled aluminum wire and enameled copper wire every year. these wires are used in transformers, motors, electric tools, winding coils, etc.
equipped with advanced production facilities and precise computer monitoring systems to guarantee product quality, we have attained iso9001:2008, sgs and ul certification.
jinglong`s motto is "pursuing perfection, innovating for the future," and we look forward to working with partners around the world in a spirit of progress and cooperation. |
|
